Sabtu, 25 Mei 2013

LYSOSOMES






Lysosomes are produce by golgi apparatus. They are spherical, small (0.2-0.5 µm) sacs covered by a single

Jumat, 24 Mei 2013

ENDOPLASMIC RETICULUM



The endoplasmic reticulum is a membranous system which is continuous with the outer nuclear membrane and scattered extensively in the cell. It forms an intra cellular transport system and a cytoplasmic skeleton. There are 2 distinct types of ER :

NUCLEUS













Eukaryotic cell have double membrane bounded except for mature mammalian erytrhocytes and phloem sieve tubes element. Prokaryotic cell do not have

Kamis, 23 Mei 2013

CELL WALL








In plants the plasma membrane is surrounded by a rigid cellulose cell wall which determine the shape of the cell, that protect  and support the plant cell. The cell wall have pits. These pits enable

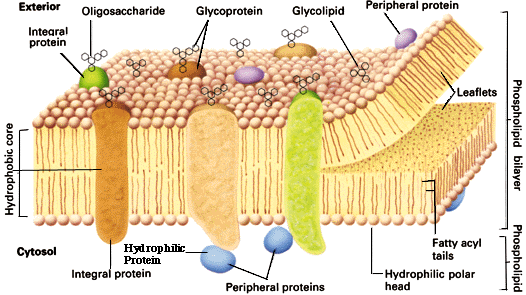

PLASMA MEMBRANE








All cell are covered by a thin plasma membrane which separated the cell conten from the extra cellular environment. Eukaryotic cells have membrane bounded organelles. The plasma membrane and the organelle membrane have the same basic structure. In 1972, S.J. Singer and G.L. Nicolson proposed

ANIMAL AND PLANT CELL



Animal cell
An animal cell seen with a light microscope contains protoplasm surrounded by a thin plasma menbrane. Each cell has a relatively large central nucleus surrounded by cytoplasm. The nucleus contain coiled threads called chromatin, Chromatin contain DNA and protein called histones which together condense to form chromosomes during cell division. DNA carries genetic

AMAZING FACT





Can bacteria prevent the spread of malaria? Michigan State University researchers have shown that the bacteria Wolbachia can actually prevent the transmission of malaria to humans by protecting mosquitoes from the malaria parasite. The researchers developed a strain of mosquitoes that were infected with Wolbachia bacteria. These mosquitoes transmitted the bacteria to the entire mosquito population providing protection against the malaria parasite.
According to researcher Zhiyong Xi, "Our work is the first to demonstrate Wolbachia can be stably established in a key malaria vector, the mosquito species Anopheles stephensi, which opens the door to use Wolbachia for malaria control." Once the mosquitoes gain immunity to the malaria parasite, they do not transmit malaria to humans.
Learn more about this study:

Species Indigenous












Researchers have discovered two new spider species in an area in China known for its giant panda population. These miniature orb-weaving spiders are less than 2 mm in length and live in obscure places such as in caves, moss, and moist leaf litter. Due to their size, these eight-eyed creatures are among the least studied spiders of their kind.
The spiders were discovered in the Sichuan and Chongqing regions. Spiders from the Mysmenidae family, to which these newly discovered spiders belong, are thought to widely inhabit tropical and subtropical regions. The new species have a unique body shape that is characterized by an over-sized spherical body.
Learn more about this study:

Rabu, 22 Mei 2013

CELL



A cell is the basic unit of life. The modern cells theory states that :
All living organism are made up of one or more cells.
New cells are formed by the division  of pre existing cells.
Cells contain genetic material of an organism which is passed from parent to daughter cells.
All metabolic reaction take place with in cell.

A cell consists of protoplasm surrounded by plasma membrane. Some organism have a non living cell wall on outer most layer. Some organism are unicellular, they are made up of just one cell. Other organism are multicellular and consists of many cells. Cells is divided into 2 categories :
a.       Prokaryotic cells, (pro, before; karyon, nucleus) which include bacteria and archae have DNA enclosed by nucleus membrane and lack organelles bounded by a double membrane.
b.      Eukaryotic cells (eu, true) which include the protoctists, fungi animals and plants have chromosomes surrounded by well defined nuclear membranes.



Table the different of prokaryoict and eukaryotic


Prokaryotic
Eukaryotic
Examples are bacteria
Examples are plants

Average diameter of cell 0,5-5 µm
Average diameter of cell 10- 100 µm

Genetic materials is circular double strand of DNA not surrounded by double membrane nuclear envelope.
Most DNA are associated with histone protein to form chromosomes. Chromoshomes are surrounded by double membrane nuclear envelope . Circular DNA are present in mithocondrion and choloroplast.

Some bacteria have small circular DNA called plasmid
Plasmid are absent.


Few organelles. No double membrane bound organelle such as mitochondrion and chloroplast.
Many organelle . Presence of double membrane organelle such as nucleus, mitochondrion and choolroplast in plant and algae

 No mitosis or meiosis
No spindle formation, just binary division
Mitosis, meiosis or both can occur. There is spindle formation.

Ribosomes are smaller, 70 Svedberg. ribosomes occur as free particles in cytoplasma
Ribosomes are larger, 80 Svedberg. Ribosomes occur as free particle or are bounded to endoplasmic reticulum

Rigid cell walls containing murein (peptidoglycan)
Cell walls of plants and algae contain cellulose, fungi contain chitin and animal cells have no cell walls.

Mesosomes in bacteria and plasma membrane of cyanobacteria contain respiratory enzym. No mithocondrion
There are no mesosomes . Mitochondria function as sites for cellular respiration  to produce ATP

Some prokaryotic are photoautrotophs. Photosinthetic membranes not staked into grana. No chloroplast

Chloroplast containing  grana
Flagella, if present, contain flagellin and lack of microtubules.
Flagella, if present have a “9 + 2” formula arrangement of microtubules

Some prokaryotic cells have enzym that can fix atmospheric nitrogen for use in amino acid synthesis
Eukaryotic cells do not contain enzym that can fix atmospheric nitrogen


PROTEIN


Proteins are organic macro molecule found in all living organism. They are polymers formed form condensation of amino acids joined by peptide linkings and have the molecular weight of the chain that exceeds 10 000. Proteins contain the elements carbon, hydrogen, oxygen and nitrogen. Many protein also contain sulphur and phosphorus.


AMINO ACIDS


An amino acid contains a basic amino group (-NH2) an acidic carboxyl group (-COOH) a hydrogen atom and a R group are covalently linked to the same carbon atom. The R group varies in different amino acids . There are 20 amino acid which occur naturally in the protein of living organism. The various combinations of different amino acid produce a various protein. The amino acid act as buffer which help maintenance  the environment of body internal fliud because protein are amphoteric molecules. Each amino acid has its own specific pH at which it will exist in zwitterion form. The isoelectric point of amino acid is the pH that cause this electrical neutrality. Essential amino acid are amino acid that cannot be synthesised in the body and which must be included in the diet. Non essential amino acid can be synthesised from other amino acid in the body provide there is adequte total dietery proteins.


PEPTIDES AND POLYPEPTIDES


The amino acid group is joined to the carboxyl group of other amino acid by a peptide bond ina condensation reaction to form a dipeptide. The bond linking the two amino acids is called peptide bond. Succesive condensation of amino acid form a polypeptide chain. The proces called polymerisation. A protein molecule consist of one or more polypeptides.


CLASSIFICATION OF PROTEINS


Some common methods used to group proteins are based on:

Levels of organisation – Primary, secondary, tertiary, and quarternary  structures.
Structures – fibrous and globular proteins.
Composition – simple and conjugated protein
Functions – structural, catalysis, signals, movement, defense and storage.

OSTEOSARCOMA







Osteosarcoma is a type of cancer that produces immature bone. It is the most common type of cancer that arises in bones, and it is usually found at the end of long bones, often around the knee. Most people diagnosed with osteosarcoma are under the age of 25, and it is thought to occur more often in males than females.

Osteosarcomas range from low grade tumors that only require surgery to high grade tumors that require an aggressive treatment regimen. Patients with osteosarcoma are best treated at a cancer center where an expert sarcoma team and resources are available to provide specialized and responsive care.
What causes osteosarcoma?

Scientists have not discovered the cause of most cases of osteosarcoma. Osteosarcoma can develop as a result of radiation to an area of the body. It can also be associated with specific genetic changes and diseases.
What are the symptoms of osteosarcoma?

Most people with osteosarcoma do not feel sick. Patients may have a history of pain in the affected area and may have developed a limp. Often the pain is thought to be related to muscle soreness or "growing pains," but it does not go away with rest. Many patients only see a doctor when there is some sort of injury to the area or when the tumor weakens a bone so much that it breaks (this is called a pathological fracture).
How is osteosarcoma diagnosed?

An x-ray is often the first diagnostic test that osteosarcoma patients receive, and an experienced radiologist may recognize immediately that bone cancer is the likely diagnosis. There are several additional tests that are a critical part of osteosarcoma diagnosis and staging:

    An MRI of the entire bone where the primary tumor is located. This test can rule out "skip metastases" (spread of the tumor to other areas of the bone).
    A chest x-ray and CT scan of the chest to detect lung metastases
    A bone scan of the body to rule out distant spread of the disease
    A biopsy of the tumor, which provides a definite diagnosis based on the characteristics of tumor tissue seen under a microscope. The biopsy will also show whether the tumor is high grade (highly malignant, which is the case for most osteosarcomas) or low grade.

There are two main types of biopsy: a needle aspiration and a surgical biopsy. The location, incision and technical aspects of the biopsy can affect a patient’s treatment options and outcome. Therefore, it is essential that the biopsy is planned by a surgeon experienced with sarcomas.

The results of the biopsy and imaging studies provide physicians with an idea of the "personality," or stage, of the disease. Most patients are diagnosed with high grade disease that does not appear to have spread throughout the body. However, it is believed that about 80% of patients with high grade osteosarcoma already have metastatic disease that is not yet visible on imaging tests.
How is osteosarcoma treated?

Osteosarcoma is often treated with a combination of therapies that can include surgery, chemotherapy and radiation therapy. Most patients with high grade tumors receive about three months of chemotherapy, known as neo-adjuvant therapy, before surgery. A surgeon will then remove the tumor, along with a wide margin of healthy tissue around the tumor, with the goal of leaving the area free of all disease.

Most tumors at the bones and joints can be removed safely while sparing the involved limb. A surgeon might use a metal implant, an allograft (bone taken from a cadaver), a combination of an implant and allograft, or a bone taken from the patient in order to replace tissues that are removed during surgery. Occasionally, because of a tumor’s size or location, an amputation or rotationplasty is the best way to completely remove the cancer and restore the patient to a functional life.

When considering surgical options, it is important that the patient and surgeon talk about the expected functional results of each option and the possible complications and risks involved. It may be in the patient’s best interest to ask a surgeon how many procedures he or she has done that involve a specific joint and to seek a second opinion from a surgeon who has more experience performing a specific surgery. Overall, patients who have limb salvage surgery and those who have amputation report similar rates of satisfaction and function after their recovery, but these rates vary greatly from one person to the next.

After surgery, a pathologist will report the tumor’s necrosis rate (the percentage of tumor cells that are dead), which is an indicator of how well the tumor is responding to the chemotherapy. Based on the necrosis rate, drugs are chosen for additional chemotherapy treatment, which normally lasts about six months after surgery.

Though radiation therapy is not widely used in osteosarcoma treatment, it can be effective and is occasionally recommended, especially when a tumor is difficult to remove surgically or when residual tumor cells remain after surgery.

Tests are done to monitor each patient’s health during treatment, with a focus on the heart, kidneys and liver. Some patients are also given scans that can indicate a tumor’s response to therapy. Because each individual responds differently, there may be significant changes to a patient’s treatment plan along the way.
What is the prognosis for osteosarcoma patients?

Prognosis statistics are based on the study of groups of osteosarcoma patients. These statistics cannot predict the future of an individual patient, but they can be useful in considering the most appropriate treatment and follow-up for a patient.

Patients with high grade osteosarcoma in one location have a survival rate of about 70%. The survival rate is higher for patients with low grade tumors, and it is lower for those whose disease has spread throughout the body and for those whose tumors have a poor response to chemotherapy.
How are patients followed after treatment?

The National Comprehensive Cancer Network recommends a schedule of follow-up exams and tests for osteosarcoma patients. It includes appointments every three months for the first two years, every four months for the third year, every six months for the fourth and fifth year, and annually thereafter. Most appointments include a physical exam, imagining of the original tumor’s location and imaging of the lungs. In patients who have been treated with chemotherapy, tests are also done periodically to monitor the heart, liver and kidneys; to test for hearing loss and to check hormone levels, bone density and cholesterol. If recurrence is detected at follow-up, further chemotherapy and/or surgery is usually recommended.

Last revision and medical review: 10/2012

By Shelly Slater Ryan and Mary Sorens

Copyright © 2012 Liddy Shriver Sarcoma Initiative.
Print it
Osteosarcoma: A Detailed Review

by Peter J. Buecker, MD; Mark Gebhardt, MD and Kristy Weber, MD
Also available in Chinese and Spanish.
Introduction

Osteosarcoma is the name given to a heterogeneous group of malignant spindle cell tumors that have as their common feature the production of immature bone, also known as osteoid. The degree of malignancy, and thus the tendency to metastasize (or spread), is determined by the histologic grade (how the tumor appears under the microscope). Sarcomas in this family range from those in which a cure can be achieved with surgery alone to those that are highly lethal, even with the most aggressive therapeutic interventions. While cure rates may approach 65-70% with multimodal therapy in patients with focal disease, the course of therapy may prove long and arduous, often lasting a year or more. As survival rates continue to improve, new challenges regarding the long-term care of osteosarcoma patients on several fronts continue to arise. Therefore, care of individuals with osteosarcoma is usually best undertaken in a multidisciplinary cancer center where the resources and personnel requisite to the care of these complex patients are most readily available. The following discussion will focus on classic high-grade osteosarcoma with references made to various subtypes as appropriate. It is also important to note that this discussion is in no way intended to be exhaustive, rather it is a review of current thought to aid communication between patient and physician.

In their article Osteosarcoma on the eMedicine website, Drs. Mehlman and Cripe state, "Osteosarcoma is an ancient disease that is still incompletely understood. The term sarcoma was introduced by the English surgeon John Abernathy in 1804 and was derived from Greek roots meaning fleshy excrescence (Peltier, 1993). In 1805, the French surgeon Alexis Boyer (personal surgeon to Napoleon) first used the term osteosarcoma (Rutkow, 1993; Peltier, 1993). Boyer realized that osteosarcoma was a distinct entity from other bone lesions such as osteochondromas (exostoses)."

Peltier L. F., "Tumors of bone and soft tissues" in Orthopedics: A History and Iconography. San Francisco, California, Norman Publishing; 1993: 264-291.

Rutkow I. M., "The nineteenth century" in Surgery: An Illustrated History. St. Louis: Mosby; 1993: 321-504.
Demographics

Osteosarcoma is the most common primary solid tumor of bone, comprising about 20% of primary bone sarcomas (Dahlin 1986). About 400-1000 new cases are diagnosed per year in the United States (Marina 2004, Gibbs 2001), giving osteosarcoma an incidence of about 3/1,000,000 population. It is largely a disease of youth, with more than 75% of cases occurring in those less than 25 years of age (Mirra 1989). Those occurring in adults are more likely to be secondary sarcomas, particularly those arising in Paget’s Disease of Bone, bone infarcts, chronic osteomyelitis and in previously irradiated tissues (Mirra 1989). Osteosarcomas are generally felt to be slightly more common in males, perhaps due to a longer period of skeletal growth as compared to females (Dorfman 1998). An exception to this tendency is parosteal osteosarcoma, which is more common in women and occurs in a slightly older age group (Dahlin 1986). No ethnic or racial predilection has been noted (Buckley 1998, Dorfman 1998, Weis 1998).
Pathogenesis and Molecular Aspects

What causes osteosarcoma? Though some understanding has been achieved, the answer to this question remains largely a mystery in most cases. Fuchs and Pritchard (2002) break down "known" causative agents into chemicals, viruses, radiation and miscellaneous. Chemical factors, thought to act by leading to genetic alterations, include beryllium compounds and methylcholanthrene. Rous et al (1912) were the first to report evidence of a viral etiology of sarcoma. The Rous sarcoma virus (a retrovirus or RNA virus) contains a gene called V-Src, which has a naturally occurring homologue thought to be a proto-oncogene (Pritchard 1975). While other viruses have been associated with bone tumor induction (Diamondopoulas 1973, Stewart 1960), FBJ is the only viral agent isolated from a naturally occurring sarcoma (Fuchs 2002) and is known to be a potent inducer of osteosarcoma in mice (Finkel 1966). The oncogene in FBJ is related to a naturally occurring protooncogene called c-Fos (Fuchs 2002), which has been found to be associated with a poor response to chemotherapy in patients with osteosarcoma (Kakar 2000).

An introduction to DNA, RNA and proteins can be found on the Nobel website. After clicking on the above hyperlink, make sure to read the section "Learn how to navigate in the document" to take full advantage of this tutorial.

Radiation is thought to play a critical role in the formation of many cancers. Its role in osteosarcoma is probably best delineated by its association with formation of secondary sarcomas occurring years after radiation treatment for other cancers, of which osteosarcoma is a common histologic finding (Enzinger 1995, Tucker 1990, 1987, 1985, Huvos 1985, Weatherby 1981).

Other miscellaneous causes have been suggested. The association of osteosarcoma and Paget’s disease of bone is well-known, and is believed to occur in about 1% of affected Paget’s disease patients. A genetic loss of heterozygosity affecting chromosome 18 has been proposed (Hansen 1999, McNairn 2001), but the exact mechanism remains elusive.

Genetic Alterations in Osteosarcoma

One of the better characterized genetic alterations associated with osteosarcoma is loss of heterozygosity of the retinoblastoma (RB) gene. The product of this gene is a protein that acts to suppress growth of cells with damaged DNA (tumor suppressor). Loss of function of this gene allows cells to grow unregulated, leading to formation of certain cancers, including osteosarcoma. Presence of this mutation has been associated with decreased survival rates in patients with osteosarcoma (Feugeas 1996). TGF-β is a growth factor found in higher levels in high-grade osteosarcoma than in low grade lesions (Franchi 1998) and is a known inhibitor of the RB gene product, perhaps contributing to the aggressive behavior of these tumors. Mutations of the p53 gene, another tumor suppressor, are also associated with osteosarcoma, and some combined inactivation of Rb and p53 is found in most osteosarcomas (Ladanyi 2003).

Human epidermal growth factor receptor (HER-2 or ERB-2) is another molecular alteration associated with osteosarcoma. Its over expression is associated with a more clinically aggressive tumor, increased metastatic potential, shorter recurrence-free intervals and worse overall survival rates (Ferrari 2004, Morris 2001, Gorlick 1999, Onda 1996). Similar associations have been reported for P-glycoprotein, an important mediator of multi-drug resistance in tumor cells (Ferrari 2004, Pakos 2003, Park 2001, Hornicek 2000) and VEGF, a growth factor responsible for tumor angioneogenesis (Hoang 2004, Kaya 2002, Zhao 2001, Kaya 2000). While many cytogenetic variations exist in osteosarcomas, the presence of predictable diagnostic patterns is conspicuously absent (Sandberg 1994).

Figure 1: A clinical photograph of a large mass of the distal femur
Figure 1: A clinical photograph of a large mass of the distal femur...
Clinical Presentation

The most common complaints that lead patients with osteosarcoma to seek medical attention are pain and presence of a palpable mass (see Figure 1), noted in up to 1/3 of patients at the first visit (Widhe 2000).

In smaller children, a limp may be the only symptom. The pain may be present for many months, and initially be confused with more common sources such as muscle soreness, overuse injury or "growing pains." Often it is not until trauma has occurred to the afflicted extremity that radiographs are obtained and an abnormality of the bone is detected. Unfortunately, if fracture through the weakened bone occurs (pathologic fracture), this can increase the rate of local recurrence of the tumor after surgery and decrease the patient’s overall chance of survival (Scully 2002). A high index of suspicion accompanied by careful examination of the limb and appropriate radiographs at initial assessment may reduce the incidence of such delays in diagnosis and the associated risks.

Pain that fails to resolve with conventional measures or is present at rest or wakes the patient from sleep should alert the clinician that further evaluation is needed. Once the presence of a tumor is suspected, referral to a musculoskeletal oncologist is warranted.

As with most sarcomas, patients often do not look or feel "sick." Presence of fever, malaise or other constitutional symptoms is not typical of osteosarcoma. Laboratory studies may be helpful, but are not specific for osteosarcoma. Sedimentation rate, C—reactive protein, alkaline phosphatase (ALP) and lactate dehydrogenase (LDH) levels may be elevated. Pretreatment elevation of ALP, present in some 50% of patients, has been suggested to be associated with an increased risk of relapse (Bacci 1993). LDH, when elevated, confers a worse prognosis, presumably by indicating a more biologically aggressive tumor (Bacci 1994, Meyers 1992).
Radiographic Features

Figure 2: AP and Lateral X-Rays of the mass seen in Figure 1
Figure 2: AP and Lateral X-Rays of the mass seen in Figure 1...

In most variants of osteosarcoma, the plain radiographs may be virtually diagnostic. Classically, these lesions are located in the metaphyses (the ends) of long bones, most commonly about the knee (see Figure 2).

Lesions are poorly marginated, associated with destruction of the cancellous and cortical elements of the bone, and show ossification within the soft tissue component (Gebhardt 2002, Gibbs 2001). Lesions may appear radiolucent, radiodense or mixed lucent and dense, depending on the degree of osteoid mineralization (Kesselring 1982). Surface variants are different in that they appear to rest atop the bone. Destructive involvement of the medullary canal in surface lesions is typically absent, though may be evident in advanced disease.

Telangiectatic osteosarcomas often are completely radiolucent. These may be confused with benign lytic tumors such as aneurysmal bone cysts. If any question exists, a biopsy should be performed.

Figure 3: T1-weighted coronal MRI image shows a large distal femur
Figure 3: T1-weighted coronal MRI image shows a large distal femur...

Other imaging modalities have a role in the initial evaluation of suspected osteosarcoma, particularly magnetic resonance imaging (MRI). MRI has replaced computed tomography (CT) as the test of choice for elucidating the extent of local disease.

While CT better details the extent of bony destruction, MRI has the advantage of providing multi-axial images, more detail regarding the soft tissue component and its relationship to nearby neurovascular structures, and is more sensitive in quantifying the extent of intramedullary involvement, see figure 3 (Estrada 1995, Gillespy 1988, Sundaram 1987).

MRI and Osteosarcoma

T1-weighted coronal and sagittal MRI images are utilized to demonstrate the extent of intramedullary disease, while T2-weighted axial images better visualize the soft tissue component (Gillespy 1988). In addition, contrasted MRI allows exquisite visualization of the tumor in relation to the nascent anatomy (i.e. nerves, blood vessels, and muscles), making it invaluable for staging and surgical planning. Since MRI does not expose the patient to ionizing radiation, it also provides a safe and accurate way to follow response to treatment and screen for recurrence with serial studies (although the metal prosthetic reconstructions or bone plates may affect the detail of the MRI image).

Bone scans (nuclear scintigraphy) and FDG-PET are useful adjuncts, but are more pertinent to staging than for evaluation of the primary lesion. The most valuable use of bone scan for evaluation of osteosarcoma is the detection of metastatic deposits within the skeleton.

A useful introduction the human skeletal system can be found on the Medical Terminology and Cancer" website of Simon Cotterill (of the University of Newcastle upon Tyne). It is entitled "The Skeletal System."
Osteosarcoma Staging

Once sarcoma is suspected, staging must be performed. There are three basic questions to be answered during staging:

    How aggressive is the tumor (grade)?
    How extensive is it?
    Has it spread?

Grade refers to how biologically aggressive the tumor appears. This is based on histological features noted at the time of biopsy. Most osteosarcomas are considered high grade (highly malignant). Extent refers to whether or not the tumor has grown beyond its compartment of origin (in the case of osteosarcoma, whether it has eroded through the bone into the surrounding soft tissue). Spread of any tumor to another site in the body is referred to as metastasis. Metastatic disease generally confers a worse prognosis to the patient than those patients without detectable metastases at diagnosis. It is generally accepted that about 80% of patients with high grade osteosarcoma have micrometastatic disease at the time of diagnosis, although there are no blood tests available to test for this microscopic disease (Link 1986). In the case of staging, however, metastasis really refers to that which can be detected by imaging (less than 20% of patients with osteosarcoma, see Ferguson 2001). The two most common sites of spread of osteosarcoma are lung and bone. Therefore, critical to the staging process are chest X-ray, CT scan of the chest and bone scan. MRI of the entire involved bone is necessary not only to evaluate the extent of the primary lesion, but also to look for "skip" metastases (Van Trommel 1997), which may be missed on bone scan (Bhagia 1997). These are metastatic foci of tumor within (or distant from) the bone of origin, and occur in less than 5% of osteosarcomas (Campanacci 1999). When detected, these lesions confer a poor prognosis, despite continued advances in adjuvant therapy (Wuisman 1990, Sajadi 2004).

Once all of the initial imaging and laboratory exams have been obtained, a biopsy is performed. The biopsy is critical, as it is the means by which tissue is acquired in order to make a definitive diagnosis. The histology (or the way it looks under the microscope) of the tumor gives the first clues to its behavior. The requisite tissue can be obtained via needle biopsy or through open methods.

Open techniques constitute surgery and are performed in the operating room. These provide the most tissue for review by the pathologist, but often are not necessary, since needle biopsy of the soft tissue mass usually can be performed. It is necessary to work with a musculoskeletal pathologist experienced in evaluating needle biopsy material in order for this technique to be practical. When needle biopsy is chosen, it is frequently performed by a radiologist under CT guidance. Placement of the needle should be under the direction of the surgeon who will perform the definitive resection as a poorly placed biopsy tract can greatly impair or even preclude successful limb-sparing surgery (Mankin 1996, 1982).

Once pathological evaluation has been performed and a histologic grade assigned, all of the information is assimilated to determine the "personality" of the tumor. One of the more common and simple staging systems used in musculoskeletal oncology is that of Enneking et al (1986, 1980), see Table 1.
Table 1: Surgical Staging of Sarcomas
(adapted from Enneking 1980) Stage      Grade   Site
IA            Low        Intracompartmental (in bone or muscle compartment of origin)
IB            Low        Extracompartmental
IIA          High       Intracompartmental
IIB           High       Extracompartmental
III            Any + Mets         Any + Mets

Utilizing this system, most patients with osteosarcoma present with stage IIB disease. That is high-grade tumor with soft tissue extension and no detectable metastases.

Figure 4: Photograph of osteosarcoma at the distal femur
Figure 4: Photograph of osteosarcoma at the distal femur...
Histology

The histologic hallmark of osteosarcoma is the presence of frankly malignant osteoblastic spindle cells producing osteoid (Figure 4). Variations are common. Currently, the World Health Organization (WHO) recognizes three distinct subtypes of conventional osteosarcoma: osteoblastic, chondroblastic and fibroblastic (Raymond 2002). Mistaken diagnoses of chondrosarcoma or malignant fibrous histiocytoma may occur. The presence of woven bone with malignant appearing stromal cells, regardless of associated chondroid or fibrous matrix, makes the diagnosis of osteosarcoma.
Microscopic Features

Osteoblastic osteosarcoma is microscopically composed of malignant appearing osteoblasts with woven bone as the predominant matrix. Chondroblastic osteosarcoma is composed of matrix that looks like cartilage with the malignant spindle cells found in the lacunae. The fibroblastic variant looks like a malignant spindle cell tumor, with scant osteoid being the only indicator of the presence of osteosarcoma. In reality, mixed appearances are common. While knowledge of these subtypes may aid the pathologist in considering the diagnosis when the histology is unclear, there is no data to support a difference in clinical behavior or prognosis based on these microscopic criteria (Marina 2004).

Figure 5a-c: The photomicrograph shows abnormal spindle cells
Figures 5a-c: The photomicrograph shows abnormal spindle cells...

Other clinically important subtypes exist. Parosteal osteosarcoma is a low grade surface variant. Microscopically, it is composed of a low grade fibrous stroma and less mitoses and cellular atypia when compared with conventional osteosarcoma (Okada 1994). A cartilage cap resembling that of an osteochondroma may be present (Wold 1990). Rarely a high grade sarcoma can arise in this setting (Sheth 1996, Wold 1984). Periosteal osteosarcoma is an intermediate grade surface lesion. It most often occurs in the diaphyses of long bones, and most commonly demonstrates chondroid histology. Telangiectatic osteosarcoma may radiographically and histologically resemble aneurysmal bone cyst. Cellular atypia and the presence of osteoid production, albeit commonly scant, herald the presence of this highly malignant entity (Wold 1990).
Osteosarcoma Treatment

The past thirty years have seen great progress in the treatment of osteosarcoma. Recognition of the importance of multimodal therapy in addition to advances in imaging is largely responsible. Not only have dramatic improvements in survival been achieved, but so has the ability to safely perform limb-sparing procedures in the majority of patients with osteosarcoma.

The standard treatment of patients with conventional osteosarcoma consists of combination chemotherapy and surgery. Some controversy exists about the timing of chemotherapy and whether it is best started after (adjuvant) or before surgery. The latter is referred to as "neoadjuvant" chemotherapy. What is agreed upon is that either surgery or chemotherapy alone is insufficient for classic high-grade osteosarcoma.

In the case of low grade surface variants, surgery alone may be curative. While chemotherapy may be indicated in intermediate grade lesions, it is not clearly a universal necessity and is probably best addressed on a case-by-case basis.
Chemotherapy

Osteosarcoma should be considered a systemic disease. It is estimated that about 80% of patients have micrometastatic disease at the time of diagnosis, though in only 10-20% can this be initially detected by standard imaging modalities (Ferguson 2001). This is the basis for utilization of systemic chemotherapy. A definite benefit to chemotherapy when combined with surgery for osteosarcoma has been shown. The best survival results are achieved in patients who present with nonmetastatic disease. Once detectable spread has occurred, treatment becomes much more difficult, and results less predictable, yet with aggressive chemotherapy and surgery, long term survival in close to half of patients is still possible.

In a randomized study, Link et al (1991) found a two year relapse free survival rate of 17% in patients treated with observation only after surgery, compared with 66% in patients who underwent chemotherapy. The survival gap between these two regimens increases with time (Link 1993).

Historically, chemotherapy was given after surgery. With the emergence of limb-sparing procedures using custom metal prostheses (which often took weeks to manufacture), some centers began giving chemotherapy prior to surgery in an effort to start treatment as quickly as possible. This gave rise to consideration of neoadjuvant therapy with delayed surgery as a preferable method of treatment (Rosen 1979). This mode of therapy is predominant in most centers today. While neoadjuvant administration delays surgery by about 3 months, it has certain advantages. For instance, it allows for assessment of tumor necrosis (death of the cancer cells) at the time of resection. This gives valuable insight into the behavior of a particular tumor.

In general, necrosis of > 90% is considered a good response to chemotherapy. It is less clear what to do if necrosis is < 90%, since changing chemotherapy regimens in poor responders has not been shown to improve overall outcome (Ferguson 2001).

Another advantage of preoperative chemotherapy is that many tumors will "consolidate" or even shrink, making surgical resection safer and more feasible. Though generally considered helpful for the aforementioned reasons, preoperative chemotherapy has not been shown to improve overall event-free survival for patients with osteosarcoma (Goorin 2003) as was originally thought (Rosen 1979).

Current protocols for osteosarcoma typically utilize drugs such as doxorubicin, high dose methotrexate (MTX) cis-platin and ifosfamide. Side effects such as cardiac toxicity or bone marrow suppression may require adjustment or even discontinuation of a given regimen.

A pre-therapy workup including an echocardiogram and blood tests is routinely performed as a baseline to evaluate cardiac and renal function before beginning potentially toxic treatment. A thorough discussion regarding the drugs to be used, timing of their administration and potential and expected toxicities/side-effects should be undertaken with the medical oncologist prior to starting chemotherapy.
Surgery
Video: Sarcoma Treatment

Osteosarcoma is a surgical disease. Once discovered, the tumor must be removed if cure is to be achieved. Most commonly, this is done after a period of chemotherapy. The main goal of surgery is to safely and completely remove the tumor. Historically, most patients had an amputation. Over the past 30 years, limb-sparing procedures have become the standard, mainly due to concomitant advances in chemotherapy and sophisticated imaging techniques. Such advances have made limb salvage possible even after pathologic fracture, previously an absolute indication for amputation (Scully 2002). Limb salvage procedures now can provide rates of local control and long-term survival equal to amputation.

The oncologic goal of tumor ablation must always take priority to function when choosing a procedure for a given patient.

If the tumor can be removed safely while retaining a viable extremity, a limb sparing procedure may be appropriate. If major nerves or blood vessels are involved, or if complete tumor removal results in significant loss of function, amputation may be a better choice. Other factors such as the patient’s age, desired level of function, cosmetic preference and long-term prognosis must also be considered. Ongoing, detailed dialogue between the patient, the patient’s family and the healthcare team is a necessity when deciding which surgical route to pursue.

Surgery requires much preoperative planning and evaluation. The patient is staged (as described above) again prior to surgery to determine what changes have occurred in response to systemic therapy. Usually plain radiographs and an MRI of the primary lesion are obtained in addition to a whole body bone scan and chest CT scan. These new studies often give the best information for surgical planning, and also help detect the presence of any new lesions and/or evaluate existing metastases. A final decision regarding the recommended surgery should be reached as early as is feasible, particularly if limb salvage is to be performed, since reconstructive techniques may take weeks to plan.

Surgical procedures fall into three basic categories: amputation, limb salvage and rotationplasty. Amputation involves removal of the limb with a safe margin between the end of the retained portion and the tumor (see "wide" or "radical" resection in Table 2).
Table 2: Surgical resection
(adapted from Enneking 1980) Intralesional         Curettage, partial tumor removal
Marginal              Margin is reactive zone, may leave microscopic tumor behind
Wide     Remove tumor and surrounding cuff of normal tissue
Radical Remove entire compartment, includes amputation

Functional outcomes after amputation vary and are dependent on many factors. For upper extremity amputations, results tend to be better in younger patients with an intact elbow joint. Lower extremity amputations are more complicated. One study found that patients’ perception of outcome of lower limb amputations were strongly correlated with the comfort of the residual limb, the condition of the opposite limb, fit and function of the prosthetic device, perceptions of how others viewed the patients in lieu of their amputations and ability to participate in exercise (Matsen 2000).

While differences between amputation and limb-sparing procedures do exist, long term outcomes with regards to patient function and satisfaction appear to be similar (DiCaprio 2003, Refaat 2002, Nagarajan 2002).
Video: Amputation for Sarcomas

While cheaper initially, amputation may be more expensive long term than endoprosthetic limb salvage because of the cost of the prosthesis and the need for periodic replacement of the prosthesis (Grimer 1997). Perhaps the biggest advantage of amputation is that it is a single operation associated with few overall complications. Amputees also have more latitude in pursuing sports because they don’t have to worry about complications related to a limb salvage prosthesis or allograft such as loosening or fracture.

Figure 6: AP and Lateral X-rays of a metallic prosthesis
Figure 6: AP and Lateral X-rays of a metallic prosthesis...

Limb salvage involves removing the tumor with a normal cuff of tissue surrounding it while preserving vascular and nerve supply to the extremity (see "wide resection" in Table 2). Once the tumor is removed, the skeletal defect must be reconstructed. Some defects can be extensive, averaging 15-20 cm in size and requiring complex reconstructions (DiCaprio 2003). Options include use of metallic prostheses, allograft (cadaveric) bone, vascularized bone acquired from the patient, or replacement of the resected bone after sterilization in an autoclave. The choice of reconstruction must take into account the location and size of the defect, expected functional outcome and wishes of the patient and his/her family. Today, endoprosthetic, allograft or allograft-prosthetic composite reconstructions are most commonly performed.

Endoprosthetic reconstruction has gained wide popularity for limb-sparing surgery. This involves replacing the removed bone with a metal implant (see Figure 5). This obviates the need for bone to bone healing as is necessary with allografts. Earlier, more aggressive rehabilitation can usually be undertaken. Complications with this type of reconstruction include component loosening and wound problems.

Aseptic loosening is most likely in patients younger than 20 years with long distal femur replacement (Unwin 1996). Overall survival of these implants is reported to be 80% at 5 years, 65% at 10 years and 50% at 20 years (Damron 1997, Unwin 1996, Malawer 1995). Infection rates in these series ranged up to 13%.

Even if catastrophic complications are avoided, the potential need for multiple revision/lengthening procedures can be burdensome. A recent report of 25 patients with endoprosthetic reconstruction revealed that 10 (40%) required at least one revision operation and that the median time to first revision was 4.9 years (Tunn 2004). Ruggieri et al (1993) reported a 63% complication rate with limb salvage procedures compared to 0% for amputation and 44% for rotationplasty. It is important for clinician and patient to understand the inherent risks and long-term reality of their choices.

Cadaveric allografts offer the benefit of biologic incorporation into the host bone. The limiting factor is time to incorporation. Chemotherapy has been shown to impair union of allograft to host bone (Hazan 2001). A comprehensive review of more than 800 allograft reconstructions revealed that if the allograft survived beyond 3 years, it was associated with excellent long-term graft survival (Mankin 1996). The greatest barriers to overcome in the first 3 years were infection (11% incidence), fracture (19%) and nonunion (17%). Osteoarticular allografts (those that replace a joint surface) bear the additional risk of joint deterioration. In the previously mentioned series, 16% of patients with osteoarticular allografts about the knee and 20% of those about the hip required total joint replacement at an average of 5 years after implantation. Additional concerns with the use of bulk allografts are disease transmission and immunogenic responses to the foreign material. While "rejection" as with other transplanted organs does not occur, immune reaction may impair graft healing and delay incorporation. Size constraints also may prove limiting, particularly in younger or smaller patients, since donors typically are of adult size.

Figure 7: Clinical photo of a patient who has had rotationplasty
Figure 7: Clinical photo of a patient who has had rotationplasty...

Rotationplasty is a compromise between amputation and limb salvage most commonly used for osteosarcomas of the distal femur. It is essentially an intercalary amputation where the neurovascular structures and distal aspect of the limb (leg) are retained, and re-attached to the proximal portion (proximal femur and hip) after the tumor has been removed. For functional purposes, the distal segment is turned 180 degrees so that the ankle joint functions as a knee joint, thus converting an above-knee to a below-knee amputation in order for prosthetic use to be maximized (see Figure 6).

Excellent functional results with regards to "knee" flexion, prosthetic ambulation and even sports participation can be routinely achieved (Merkel 1991). This is partly due to the retention of proprioception and sensation of the foot (Winkelmann 1996). Rotationplasty is best suited for skeletally immature patients (less than 12 years old) with tumors about the knee, though it has been successfully performed in older patients. The main disadvantage to this form of reconstruction is the cosmetic appearance. Preoperative education and counseling about the nature of the operation, course of postoperative physical therapy and the appearance of the limb after rotationplasty are essential. It is often helpful if the patient and his/her family are able to meet someone who has undergone rotationplasty in order to gain a better, more realistic level of understanding of how to live with a rotated limb.

Surgery in Skeletally Immature Patients

Special consideration must be given to skeletally immature patients, as continued growth of the uninvolved extremity may pose additional problems and require multiple future operations. This is most exaggerated for tumors occurring about the knee, as these growth plates provide 70% of the overall limb length (Finn 1991). Contralateral growth plate arrest or ipsilateral limb lengthening may be required to equalize limb length differences. Modular and expandable endoprostheses are being used more commonly to achieve limb length equality. These implants utilize smooth uncemented stems for fixation across the retained growth plate so that some growth can continue to occur (Neel 2004, Eckardt 1993). Attainment of skeletal maturity often necessitates revision to a more "permanent" prosthesis with all of the associated risks discussed previously. Attendant risks are similar to those for other limb-sparing procedures, with loosening and infection being the most common complications. Despite the potential need for multiple procedures, functional results and overall patient satisfaction appear to be acceptable (Neel 2003, Plötz 2002, Eckardt 2000, Tillman 1997, Ward 1996, Eckardt 1993, Kenan 1991).
Prognosis for Osteosarcoma Patients

Drs. Marulanda and Letson have written an ESUN editorial about the importance of identifying prognostic factors in osteosarcoma.

With current treatment regimens, patients with osteosarcoma without detectable metastases have survival rates that approach 70%. Factors that seem to negatively impact prognosis are site (axial locations fare worse), larger tumor size, poor response to chemotherapy and presence of metastatic disease (Bielack 2002). The most consistent and clinically relevant of these is presence of detectable metastases (Bielack 2002, Marina 1993, Meyers 1993). Patients presenting with resectable pulmonary lesions have about a 30-50% chance of survival (Bacci 1997). Those with unresectable pulmonary metastases, lesions unresponsive to chemotherapy or multiple bone lesions continue to fare much worse, regardless of treatment (Ferguson 2001, Bacci 1996, Meyers 1993).
Surveillance

Once treatment has been completed, careful follow up is required to monitor for signs of recurrence, metastasis and treatment related complications. This involves careful physical examination, radiographs of the primary site, serial chest imaging, bone scans and laboratory examinations. Such evaluation is performed frequently in the immediate post-treatment period and less frequently with time as long as the patient remains free of disease. If recurrence is detected, additional surgery and chemotherapy may be warranted. The same principles apply as for primary disease, though long-term survival rates are lower (Ferguson 2001, Link 1991). Some data suggest that patients with early relapse (< 1 year after treatment) have poorer outcomes than those who relapse later (Ferrari 1997).
Conclusion

Over the last 30 years, osteosarcoma has gone from a disease that proved uniformly fatal to one that is potentially curable. Improvements in long-term survival brought about by advances in systemic therapy have led to many new challenges in caring for these patients. As patients live longer with the diagnosis of osteosarcoma, function and quality of life measures are becoming increasingly more important. Decisions regarding treatment now must consider consequences that may occur much later in the patient’s life. Further understanding of the etiology and pathogenetic mechanisms at work in osteosarcoma hopefully will lead to new, innovative treatment options. Continued collaborative research on the clinical and laboratory fronts is necessary for such future advances to be achieved.


Sumber :  http://sarcomahelp.org/osteosarcoma.html

Related Posts Plugin for WordPress, Blogger...

About Biology

Flag Counter
